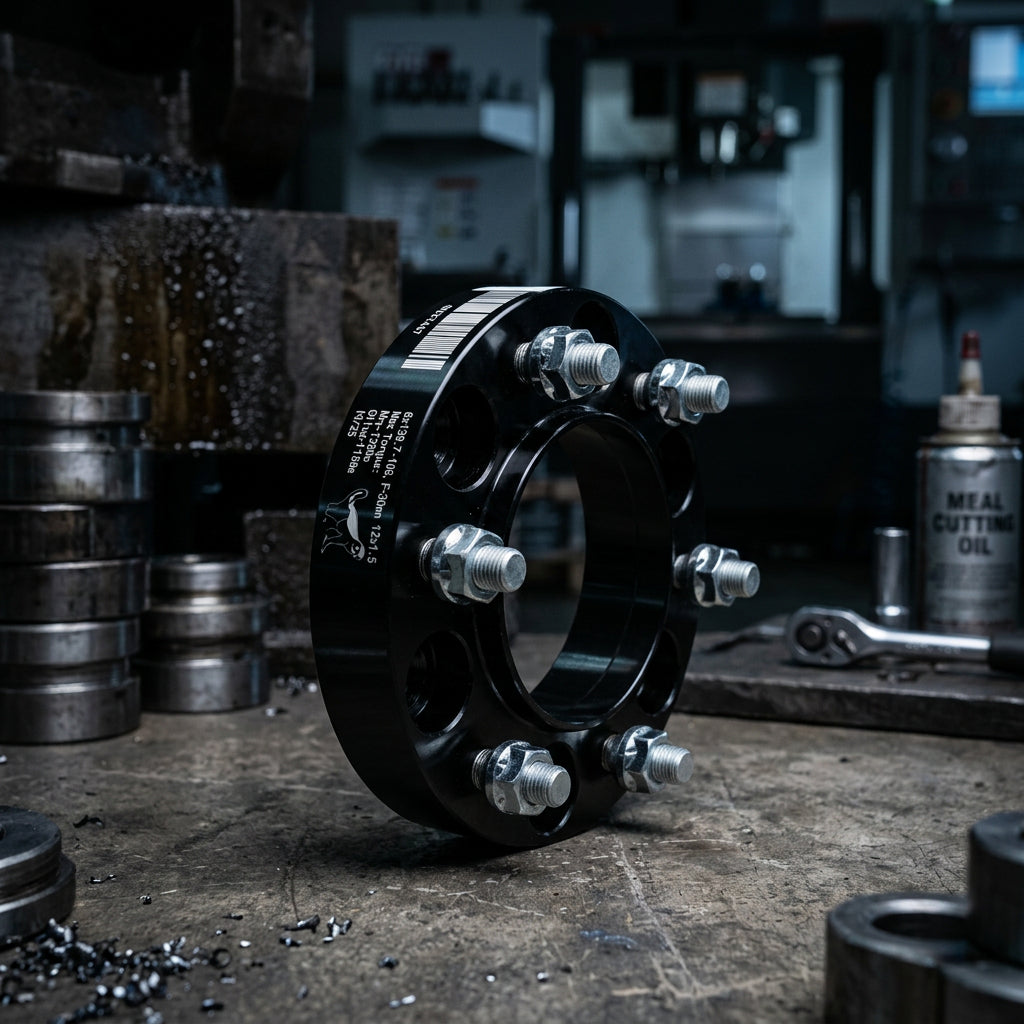

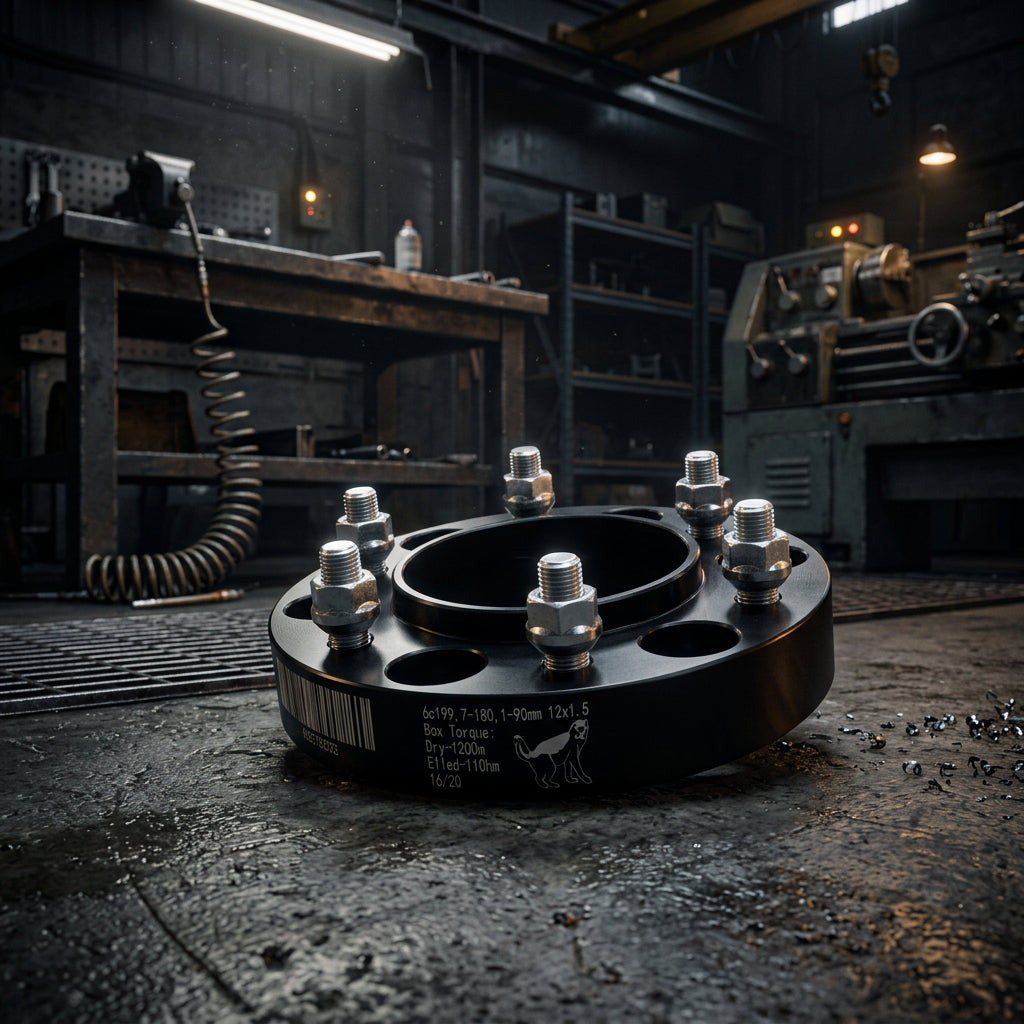

GWM P Series and Tank 300 Wheel Spacer Hub Centric

Precision hub-centric wheel spacer engineered for GWM P Series and tank 300 vehicles. Maintains perfect axle alignment while enhancing stance and visual appeal. Direct fitment design ensures hassle-free installation with factory-grade tolerances. Ideal for owners seeking improved aesthetics without compromising ride quality or safety.

PCD = 139.7 Inner Bore = 100.1mm Thickness = 30mm - Stud = M12x1.5
Max Torque DRY = 120Nm
Max Torque oiled / greased = 110 Nm .

The wheels spacer bolts onto the vehicle on the existing studs with the nuts supplied. Your wheel then bolts onto the wheel spacer using the studs on the wheel spacer and your original nuts.

• Wheel spacer material ALUMINUM
• Stud - 12x1.5mm - high tensile 10.9 grade
• Nuts - 40CrMo high tensile steel
• 30mm thick
• 139.7 PCD
• Centre bore 100.1 mm

Comes in a set of 4
